Purpose

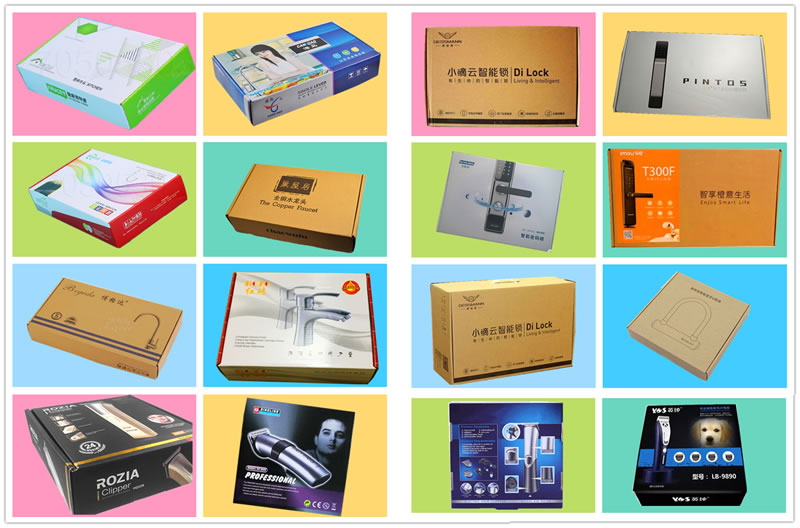

This machine is mainly used for the production and processing of airplane box (hand inserted) paper boxes, widely used in the processing and production of packaging boxes and paper boxes for clothing, shoes, handicrafts, daily necessities, electronics, appliances, hardware, standard parts and other express delivery.
Performance Feature
1. Fully servo driven, computer-controlled, interactive human-machine interface, achieving intelligent integration of light, machine, electricity, and gas.
2. Double paper feeding stations can be interchanged to achieve non-stop loading of cardboard materials. Improve production efficiency.
3. Intelligent servo one-way low delivery, smooth operation, and stable performance.
4. Automatic fault diagnosis function, automatic shutdown in case of faults, screen display of fault cause, convenient and fast troubleshooting.
5. The whole machine has a small footprint, good stability, high efficiency, and meets the requirements of an environmentally friendly production environment.
The Technical Parameter
The W size of the smallest paper box:
140mm
The W size of the biggest paper box:
300mm
The L size of the smallest paper box:
200mm
The L size of the biggest paper box:
420mm
The H size of theo smallest paper box:
30mm
The H size of the biggest paper box:
80mm
Motor Powor:
6.5Kw
Pressure:
0.7mpa
Production Rate:
25pcs/min
Dimension:
3500x1500x2200mm
Weight:
800Kg
