purpose:

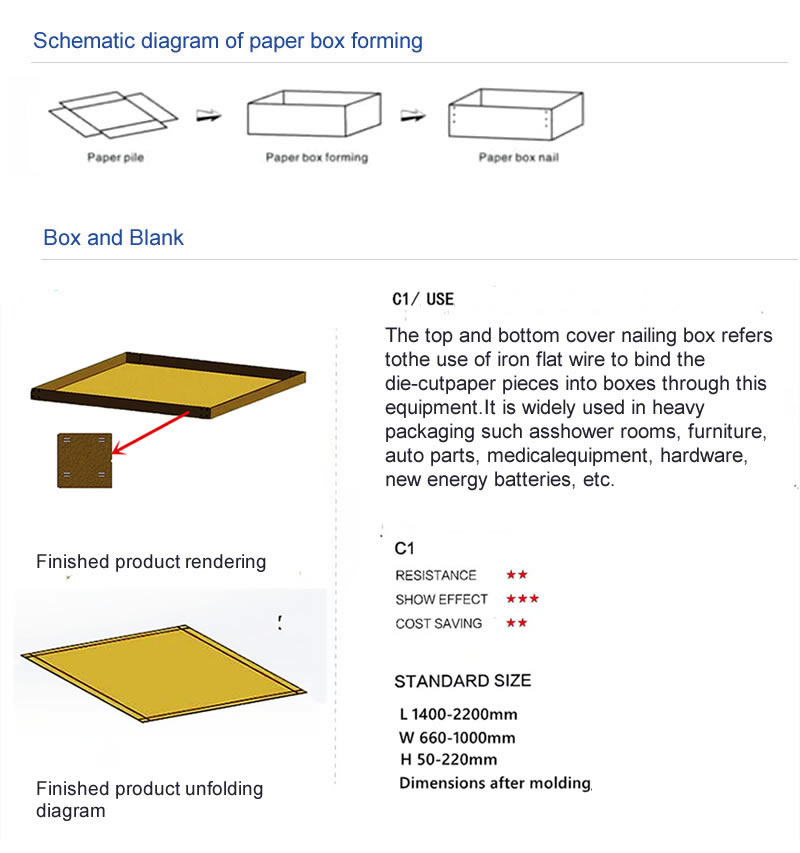

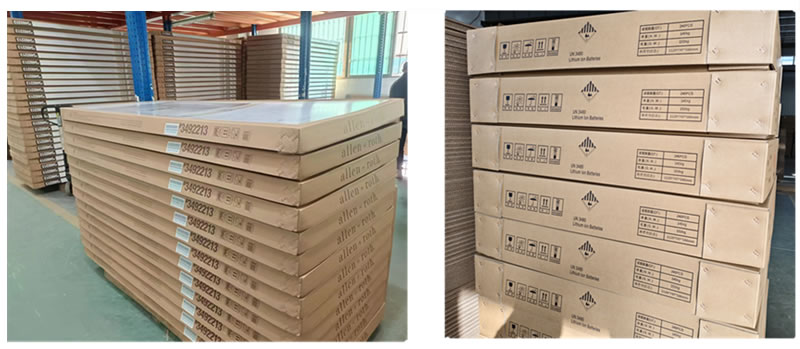

With the industrial upgrading of packaging products in industries such as shower rooms and furniture, and the rising trend of labor processing costs; The increasingly high processing costs in the industry have brought about a severe situation, resulting in a super compression of product profits and increasingly difficult survival risks for various related enterprises. This product is a brand new fully intelligent ceiling nail box equipment launched by our company in response to the above in a timely manner to the market; Filling the gap in the domestic paper box industry. This equipment has automatic mold changing, multiple production specifications, large products, high efficiency, flexible operation, low maintenance costs, and production efficiency is more than ten times higher than traditional manual methods. The advantage of this equipment is that it can automatically feed paper, fold edges, and nail in one go. This product is widely used for the processing and production of heavy-duty packaging products such as shower rooms, furniture, massage chairs, auto parts, medical equipment, and hardware, including floor covers and boxes.
Performance characteristics:
1. The cardboard is automatically fed, and the continuous operation of feeding, forming, and nailing is completed in one go.
2. Adopting motion controller, servo drive system, photoelectric tracking system to detect the operation system, touch screen human-machine interface, and implementing automation of the entire paper box forming process.
3. Automatic fault diagnosis function.
4. Fully automatic mold adjustment, fast mold adjustment speed.
5. Nailing mechanism: Four heads synchronized, high precision
6. The feeding method adopts upward suction paper and mechanical arm paper feeding.
7. The machine adopts a split design for easy transportation and installation.
8. The distance between the upper and lower nails and the distance between the left and right nails are adjustable and can be adjusted according to one's own needs.
9. This machine can operate independently or be used in conjunction with automated packaging assembly lines.
The Technical Parameter:
Power:
380V/50Hz
Noise:
less than or equal 80DB
Speed:
6-10pcs/min
Pressure:
0.6MPa
Total Power:
10kw
Machine Weight:
5000kg
Dimensions:
6200x3640x2230mm
Applicable flat wire:
18#
Cardboard thickness size:
6-9mm (5-layer,7-layer corrugated paper)
