RK-NAIL1100 fully automatic nail box forming machine

Purpose:

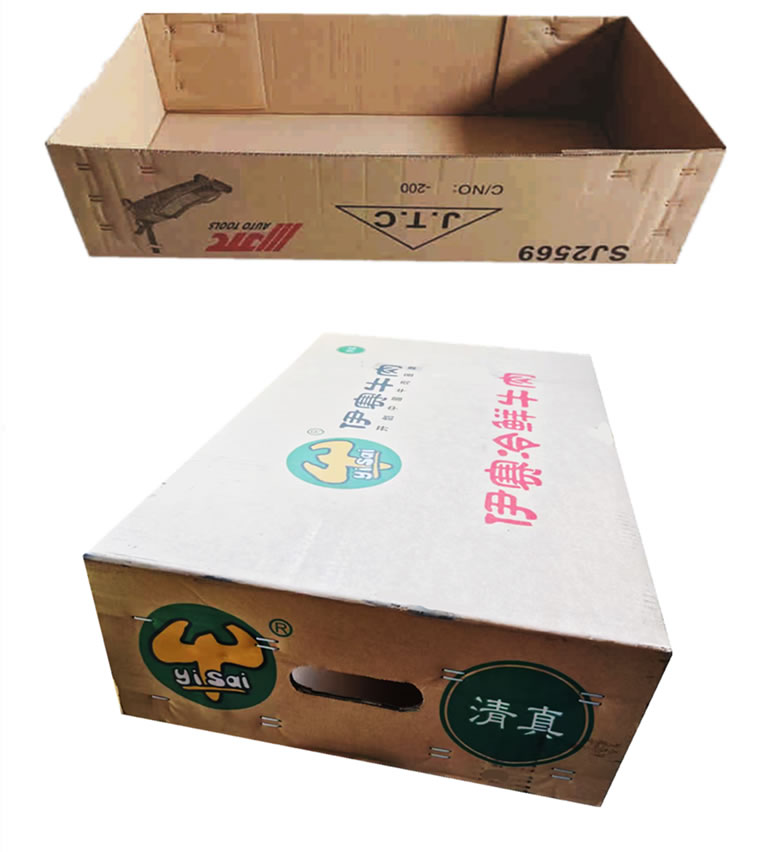

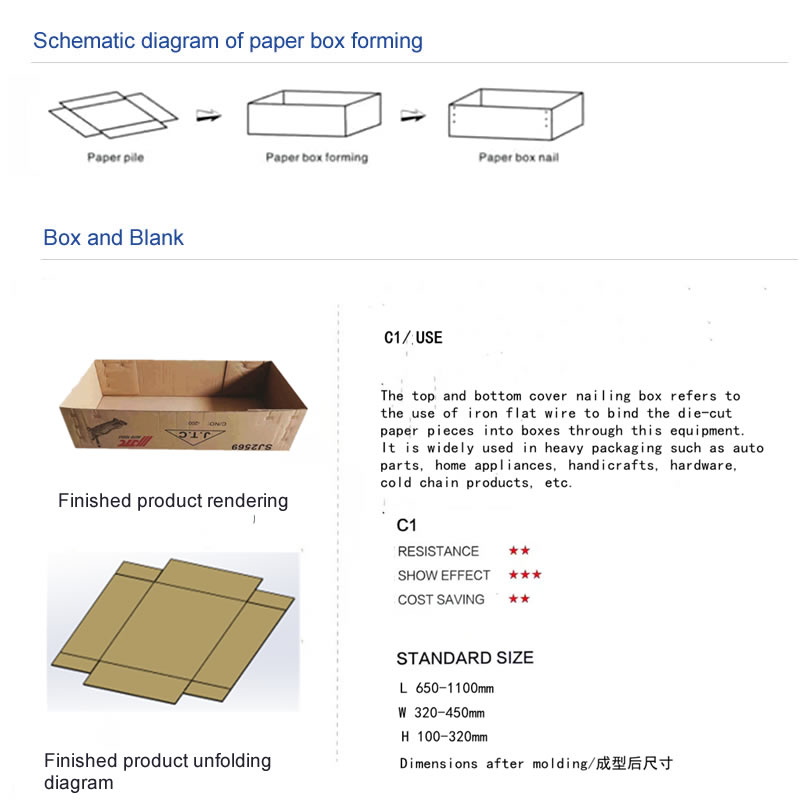

The RK-NAIL1100 fully automatic nail box forming machine is an automatic steel wire nail box three-dimensional forming and packaging equipment developed by our company based on market demand, low production efficiency of large nail boxes, and time-consuming and laborious requirements. Widely used in the industries of handicrafts, electronics, electrical appliances, sanitary ware, home appliances, auto parts, and heavy-duty packaging with oversized top and bottom paper boxes.

Intelligent computer control, high-precision photoelectric tracking, touch screen human-computer interaction; Adopting thickened wear-resistant belt bottom suction feeding combined with pressurized suction assisted feeding, the paper feeding is stable and smooth; The host is equipped with variable frequency linkage speed regulation combined with servo automatic feeding: the cardboard forming adopts intelligent servo motors to shape different specifications of paper boxes. The nail box: double row steel wire nail positions can be customized according to customer requirements. Compensating for the lack of large wire nail box and paper box three-dimensional forming machines in the market, it is the preferred equipment for various paper box packaging enterprises.

Performance characteristics:
1. The host adopts a frequency converter linked speed regulation, which can automatically adjust the speed according to different specifications of paper boxes, and is stable and energy-saving.
2. Multiple thickened wear-resistant belt bottom suction feeding combined with pressurized suction assisted feeding, continuous feeding without stopping, multiple feeding plates at once, high stability.
3. Intelligent servo forming nail box, the position of the paper box nail box can be adjusted freely, achieving multi specification top and bottom nail box forming.
4. Automatic mold adjustment, fast speed, and storage function.
5. Intelligent computer programming control, touch screen human-computer interaction interface, high-precision optoelectronic system, achieve one-time molding of paper boxes with high degree of automation.
6. Equipped with wire leakage and breakage detection function.
7. Optional post production line automatic box loading and automatic box covering can be added to achieve full process automation.
8. The automatic fault diagnosis function makes it clear at a glance when faults occur, making troubleshooting more convenient and efficient.
9. Double row steel wire nail positions can be customized according to customer requirements.

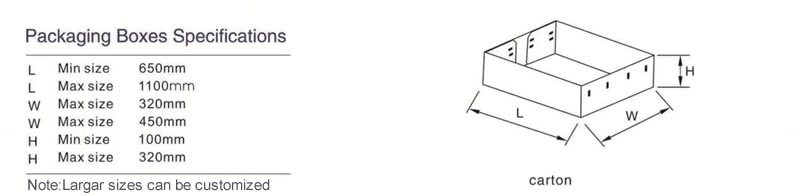

The Technical Parameter:
