RK-NAIL3020 High speed intelligent fully automatic steel wire nail box forming machine

Purpose:

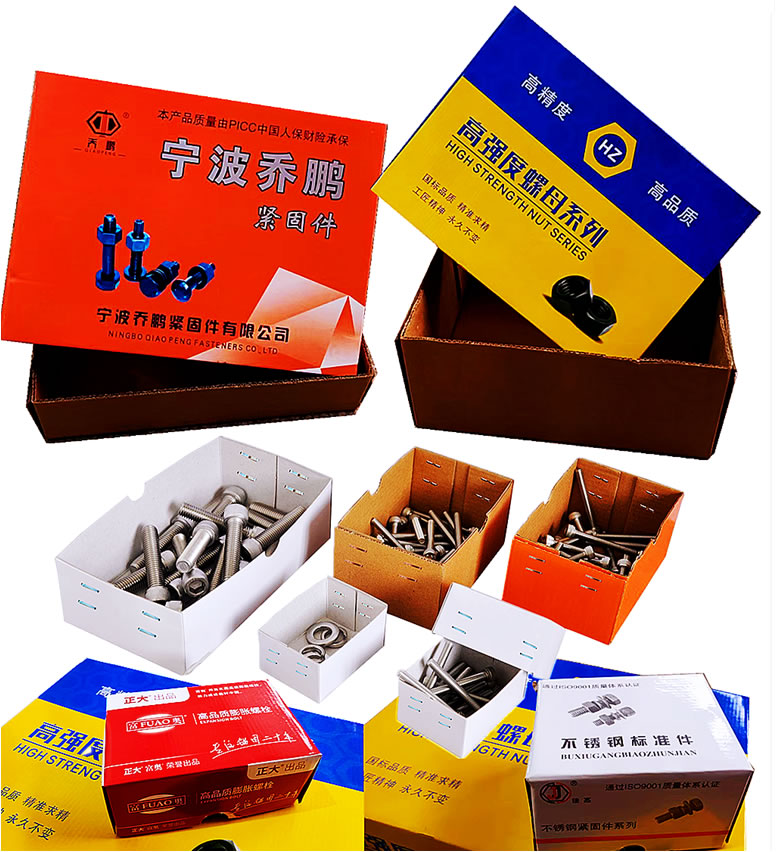

The RK-NAIL3020 fully intelligent nail box machine is a high-speed intelligent fully automatic steel wire nail box forming and packaging equipment developed by our company based on market demand and domestic and foreign technology. Widely used in the packaging industry of handicrafts, electronics, electrical appliances, hardware, and standard parts, including sky and earth cover paper boxes.

Intelligent computer control, high-precision photoelectric tracking, touch screen human-computer interaction; Adopting an extended conveyor belt for suction type non-stop feeding or downward suction type non-stop feeding, the host is equipped with variable frequency linkage speed regulation, and the cardboard forming adopts an intelligent servo motor that can perform forming and nailing operations on different specifications of paper boxes. Combined with the automatic feeding of the rear assembly line and the addition of top cover box equipment, the cardboard forming to product packaging can be completed in one go. The method of using one machine to simultaneously produce top and bottom paper boxes saves costs and improves efficiency, which is currently the preferred equipment for various paper box packaging enterprises.

Performance characteristics:

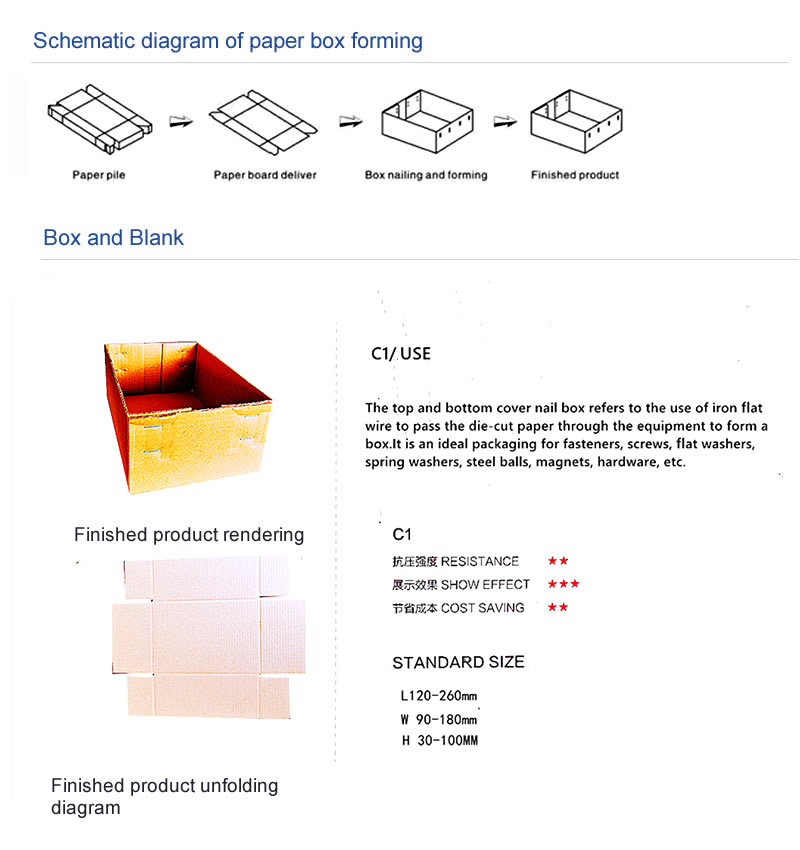

1. The cardboard is automatically fed, and the continuous operation of feeding, forming, and nailing is completed in one go.
2. Adopting PLC, servo drive system, photoelectric tracking system to detect and operate the system, touch screen human-machine interface, and implementing automation of the entire paper box forming process.
3. Automatic fault diagnosis function, clear at a glance when faults occur, easier to troubleshoot
4. Automatic mold adjustment, fast speed, and storage function.
5. Adopting a two station structure design, the cover and bottom are formed simultaneously to save costs and improve efficiency.
6. The lid and bottom are formed, and can be freely switched between synchronous and asynchronous according to needs.
7. The nailing mechanism adopts a structure of one machine controlling four heads: the four heads are synchronized and have high precision.
8. Adopting non-stop feeding.
9. Rack cage design, integrated processing, and grouped combination.
10. The whole machine has a small footprint and strong stability.
11. Equipped with wire leakage and breakage detection function.

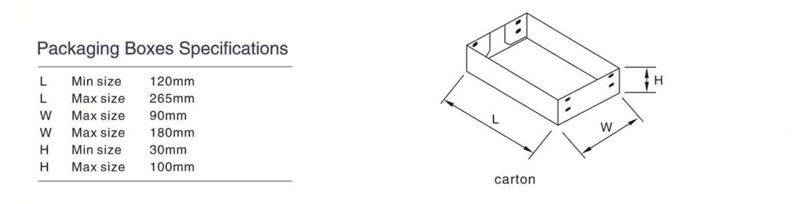

The Technical Parameter:
