Purpose :

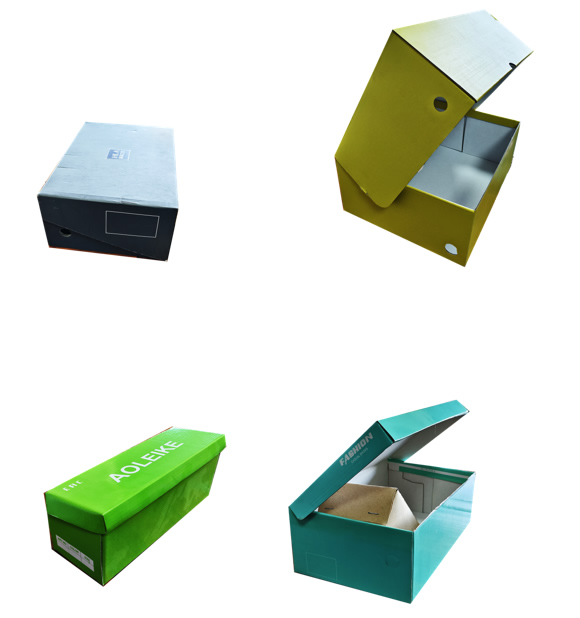

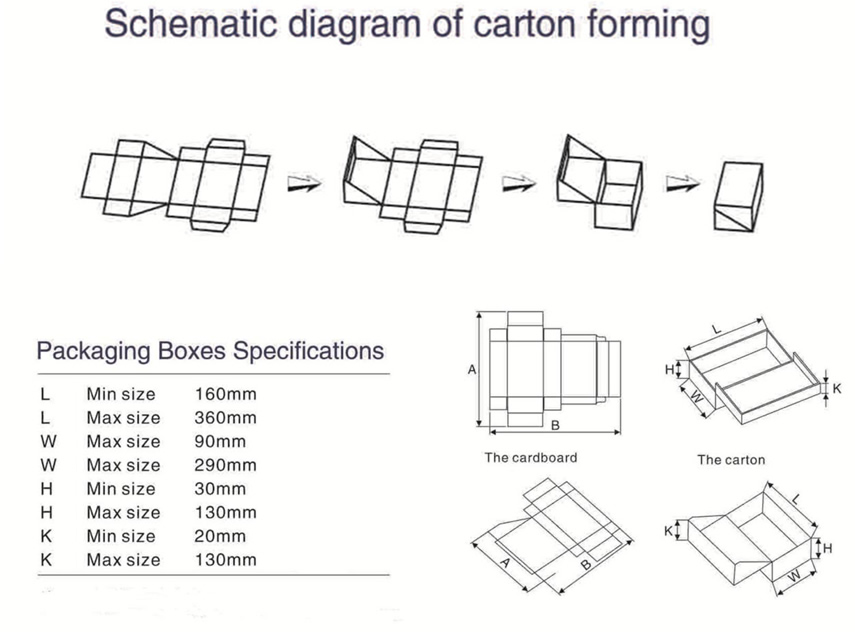

This machine is mainly used for the production and processing of integrated lid packaging paper boxes, widely used in the processing and production of packaging boxes and paper boxes for clothing, footwear, handicrafts, daily necessities, electronics, appliances, and hardware standard parts. This machine can produce different shapes of paper boxes such as semi reverse cover, full reverse cover (airplane box), wide edge, narrow edge, soft edge, and edgeless (stapler box).
Performance characteristics:
1. Adopting an intelligent high-speed hot melt adhesive spraying system.
2. Cardboard automatic feeding, continuous operation feeding, edge wrapping, ear folding, and folding forming. Complete it all at once .
3. Adopting motion controller, servo drive system, photoelectric tracking system, detection and operation system, touch screen human-machine interface, the entire process of paper box forming is automated.
4. Automatic fault diagnosis function.
5. Adopting a fully automatic mold adjustment system with automatic and rapid mold adjustment function.
6. The mold replacement adopts CNC form, which is fast and has memory function.
7. Rack cage design, integrated processing, and grouped combination.
8. The whole machine has a small footprint and strong stability.
9. Adopting photoelectric system and automatic box cover function.
10. Adopting main and auxiliary platforms, with non-stop cyclic refueling function
11. The lid and bottom are formed separately, making the paper box more stable and the finished product more aesthetically pleasing.
Technical parameters:
Power supply voltage:
380V/50Hz
Noise level:
less than or equal 80db
Speed:
2400-3300 (Pieces/hours)
Height of cardboard stacking:
1100mm
Cardboard stacking platform load-bearing capacity:
150kg
Total power:
7.5Kw
Gas source:
400L/minute
Net weight of the machine:
1000Kg
Machine dimensions:
3400x2200x2400mm
