RK-ZDTL550 High-speed Sky and Ground Cover/ConjoinedBox Carton Forming Machine(Shoe Box Machine)

Purpose:

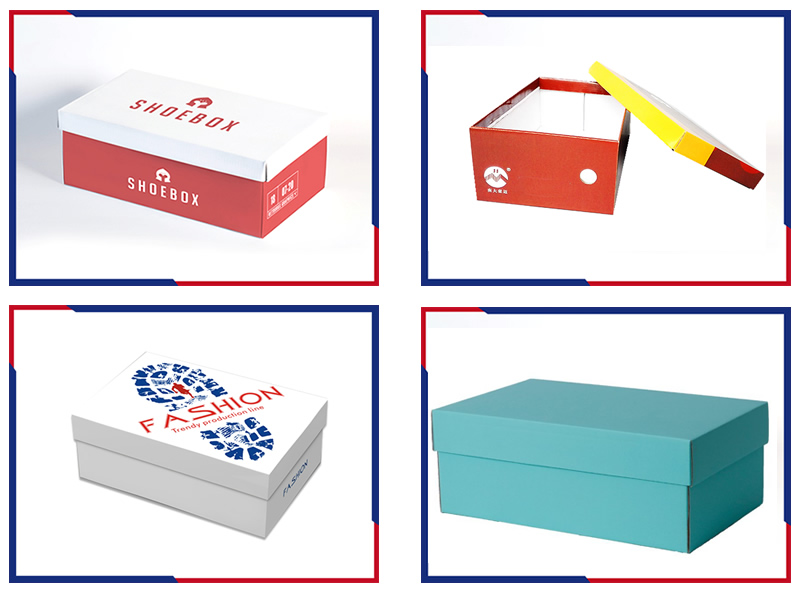

This machine is mainly used for the production and processing of one-piece lid packaging paper boxes and top and bottom lid paper boxes. It can produce both top and bottom lid boxes as well as one-piece boxes, completing the process from paper to box forming in one go. Widely used in the processing and production of packaging boxes and paper boxes for clothing, footwear, handicrafts, daily necessities, electronics, appliances, hardware, standard parts, etc. This machine can produce different shapes of paper boxes, including semi reverse cover, full reverse cover (airplane box), wide edge, narrow edge, soft edge, and no edge wrapping (stapler box).

Performance characteristics:
1. The one-piece box and the ceiling cover can be freely switched, making it convenient and fast.
2. The formation of the heaven and earth cover does not require edge crossing, and it can be formed in one go with fast speed.
3. Adopting an intelligent high-speed hot melt adhesive spraying system.
4. The cardboard is automatically fed, and the continuous operation of feeding, edging, folding ears, and folding forming is completed in one go.
5. Adopting motion controller, servo drive system, photoelectric tracking system to detect the operation system, touch screen human-machine interface, and implementing automation of the entire paper box forming process.
6. Automatic fault diagnosis function.
7. Fully automatic mold adjustment, fast speed, and storage function.
8. Rack cage design, integrated processing, and grouped combination.
9. The whole machine has a small footprint and strong stability.
10. Adopting photoelectric system and automatic box cover function.
11. The molding adopts separate molding of the lid and bottom, making the paper box molding more stable and the finished product more beautiful.

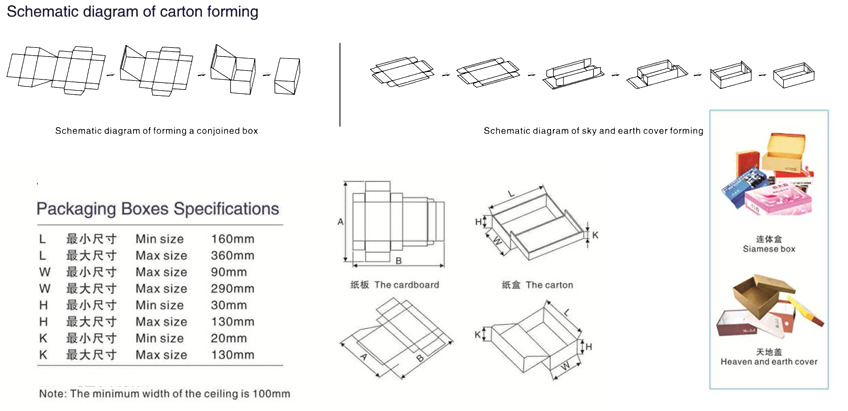

The Technical Parameter:
